Input 220V Output 0-250V AC Automatic Voltage Regulator

Name: Input 220V Output 0250V AC Automatic Voltage Regulator
Brand: YOMIN
Price: 1 USD

China Input 220V Output 0-250V AC Automatic Voltage Regulator factory

Brand Name : YOMIN

Model Number : TDGC2 - 7.5KVA

Certification : CE / RoHS

Place of Origin : Zhejiang , China ( Mainland )

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C , T/T , Western Union , Paypal

Supply Ability : 1000 Pieces Per Week

Delivery Time : 5 - 20 working days after received your payment

Packaging Details : Export carton , 1 Piece / Carton

Frequency : 50Hz / 60Hz

Max.Temperature : 60 ℃

Variable Operation : Manually Operated Rotary Knob

Housing Material : Shock - Proof Metal

Winding Material : 100% Copper

No . of Phase : Single Phase

Contact Now

Input 220V Output 0-250V AC Regulator ,Automatic Voltage Regulator TDGC2 - 7.5KVA

Product Description :

The Voltage regulators ( Variac ) are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications . No additional wave from distortion . The main applications are :

Laboratory control equipment .
Lighting equipment .
Temperature controls .
Motor speed control .
Controlling of other transformers .
Etc .

Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the voltage regulator ( Variac ) which allows to act on the brush and achieve the desired voltage . The voltage can be smoothly varied between turns as the brush has a relatively high resistance ( compared with a metal contact ) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings .

Technical parameters :

020Capacity......................................................7500VA
Output Current...........................................30A
Output.........................................................0~250VAC
Frequency..................................................50/60Hz
Input............................................................220VAC
Insulation Resistance..................................>5MΩ
No. of Phase..............................................Single-Phase
Winding Material........................................100% Copper
Max.Temperature........................................60℃
Insulation Class..........................................Class B(130℃)
IP/NEMA Rating..........................................IP20
Variable Operation.....................................Manually Operated Rotary Knob
Portable Carrying Grip................................Provided
Pollution Rating.........................................Class III
Analog Voltmeter Display............................Provided
Housing Material.......................................Shock-Proof Metal
Voltage Setting..........................................Manual Control
Standards.................................................VDE0550,IEC204-1,IEC61588,EC439
Sample Service..........................................Pay to Provide
Quality Assurance....................................18Months
Item Condition...........................................Brand-New

Item	Capacity	Input Voltage	Output Voltage	Output Current	Case Qty .
Model	( kVA )	( V )	( V )	( A )	( Pcs . )
TDGC2 - 0.2	0.2	220	0 ~ 250	0.8	12
TDGC2 - 0.5	0.5	220	0 ~ 250	2	6
TDGC2 - 1	1	220	0 ~ 250	4	4
TDGC2 - 2	2	220	0 ~ 250	8	4
TDGC2 - 3	3	220	0 ~ 250	12	2
TDGC2 - 5	5	220	0 ~ 250	20	1
TDGC2 - 7.5	7.5	220	0 ~ 250	30	1
TDGC2 - 10	10	220	0 ~ 250	40	1
TDGC2 - 15	15	220	0 ~ 250	60	1

Input 220V Output 0-250V AC Automatic Voltage Regulator

Product Tags:

automatic voltage regulator

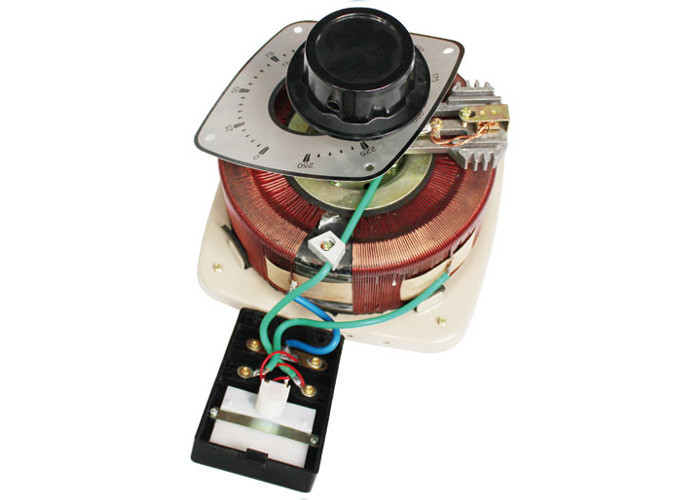

Input 220V Output 0-250V AC Automatic Voltage Regulator Images
